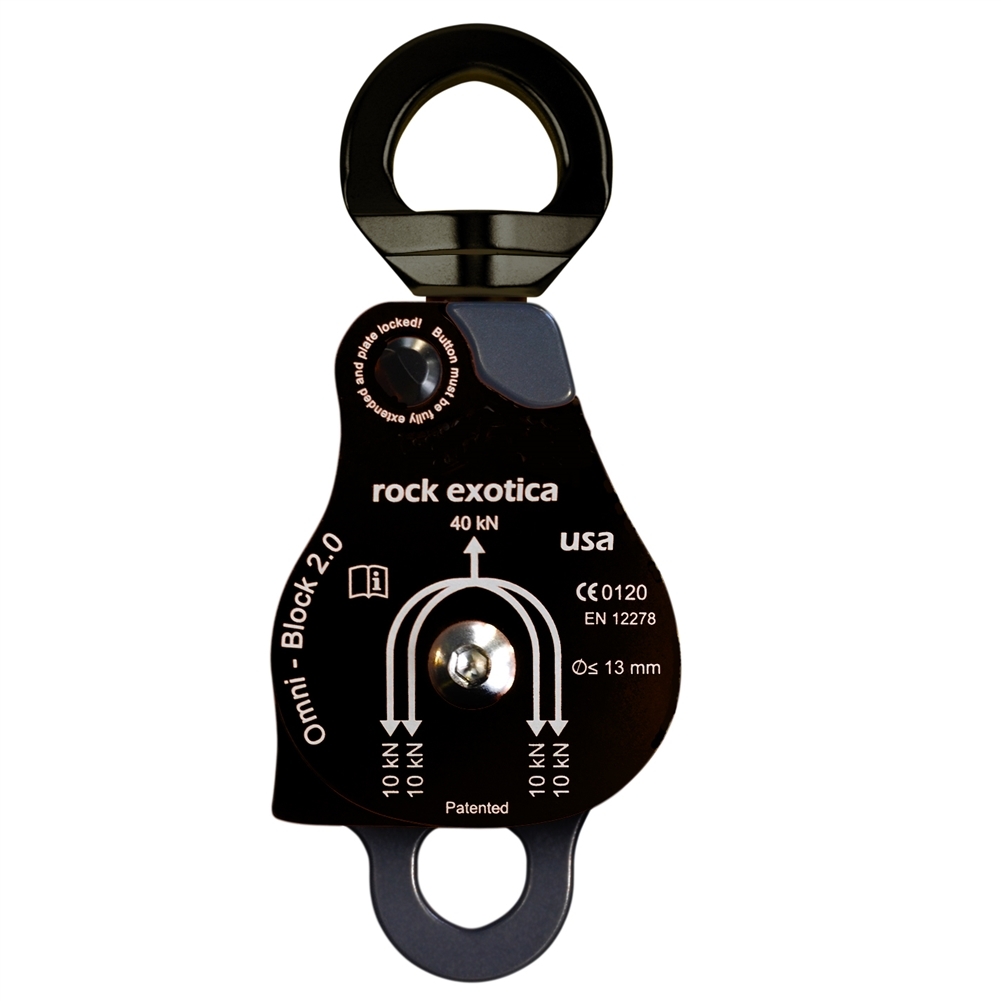

the OMNI-BLOCK combines a swivel and pulley into one tool and incorporates a unique side-plate that opens while the pulley is still attached to the anchor.

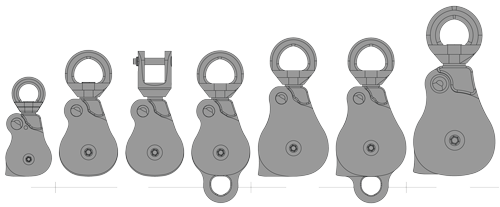

available in single and double sheave versions from 1.1 inch (28mm) radius up to 2.6 inch (66mm).

key features & application

  • the OMNI-BLOCK swivel pulley is made from solid materials.

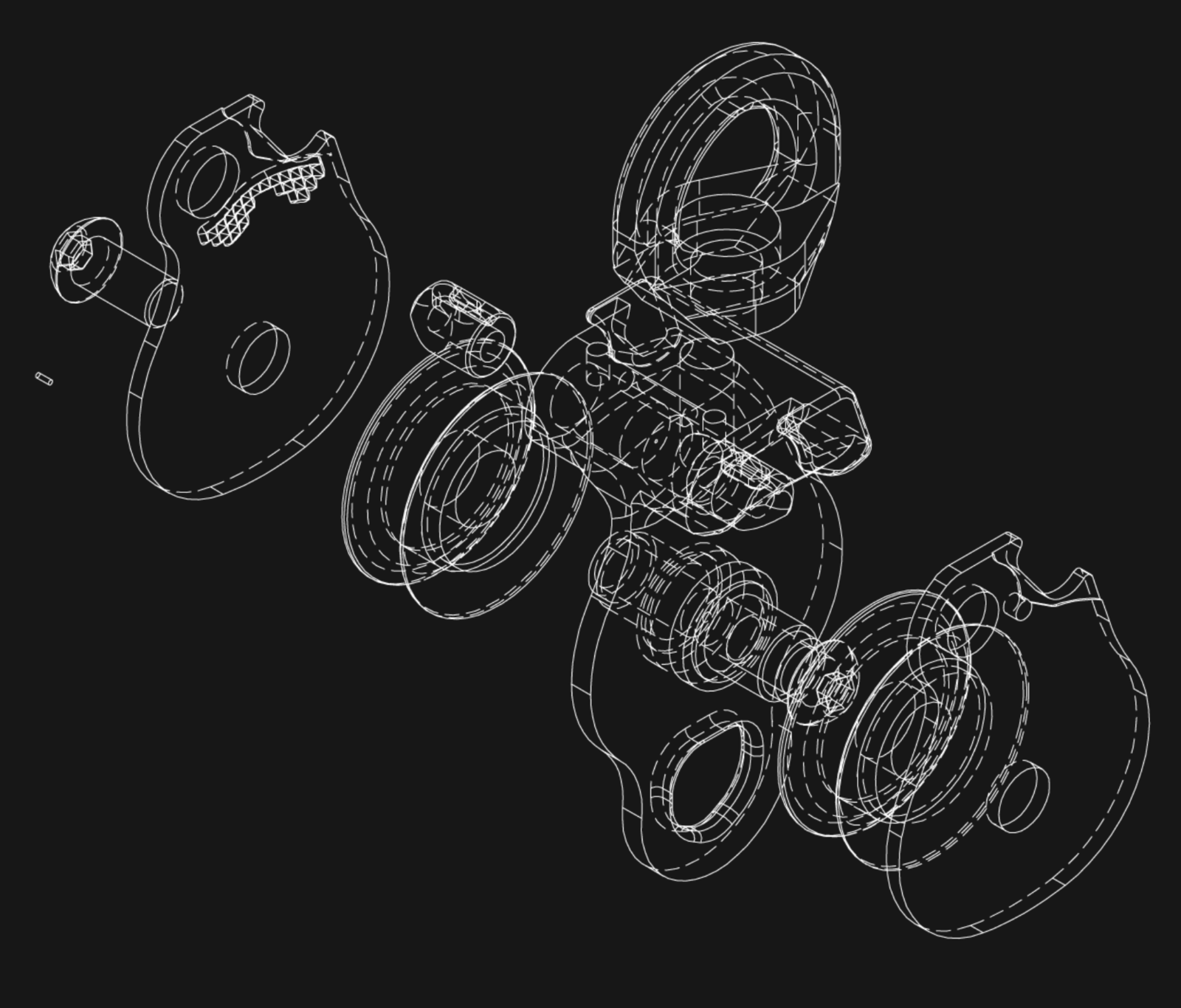

  • the design and function of the pulley require a strong core from which the sheaves, side-plates and swivel top must connect.

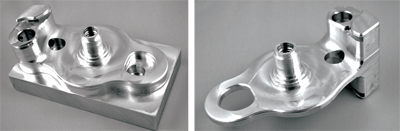

  • state of the art machining of solid block of aluminium can cut away material thus createing this integral part.
  • with precision available using these machines, the block of aluminium is transformed into an axle, headpiece, beckett, and release button housing all in one. the result is a pulley that is lighter, stronger, and more compact than those made by traditional methods and stamped parts.
  • the OMNI-BLOCK combines a swivel and pulley into one tool and incorporates the unique side plate that opens while pulley is still attached to the anchor. traditionally a pulley is connected to a swivel by a carabiner. however, the OMNI-BLOCK eliminates the need for the carabiner, reducing length and pieces of equipment in the rigging system.
  • the short length of the OMNI-BLOCK is important when used in high angle, confined space or other space sensitive rigging environments.
  • the reduced weight of the OMNI-BLOCK will make hauling your gear easier.
  • additionally, the only side-plate can be open without detaching from the carabiner. traditional pulleys require removing from the carabiner to change the rope.
  • with the OMNI-BLOCK, the user is able to do this while pulley is still secured.

mechanical data

  • standard: CE
  • install and remove rope while still connected to the anchor
  • side-plate locks with two stage, double catch safety mechanism
  • integrated swivel allows pulley to orientate while reducing gain
  • connect, install and remove rope with one hand
  • cnc machined for optimal weight and strength
  • max rope: 13mm (.5")
  • maximum breaking strength: 40kN
  • working load limit: 10kN

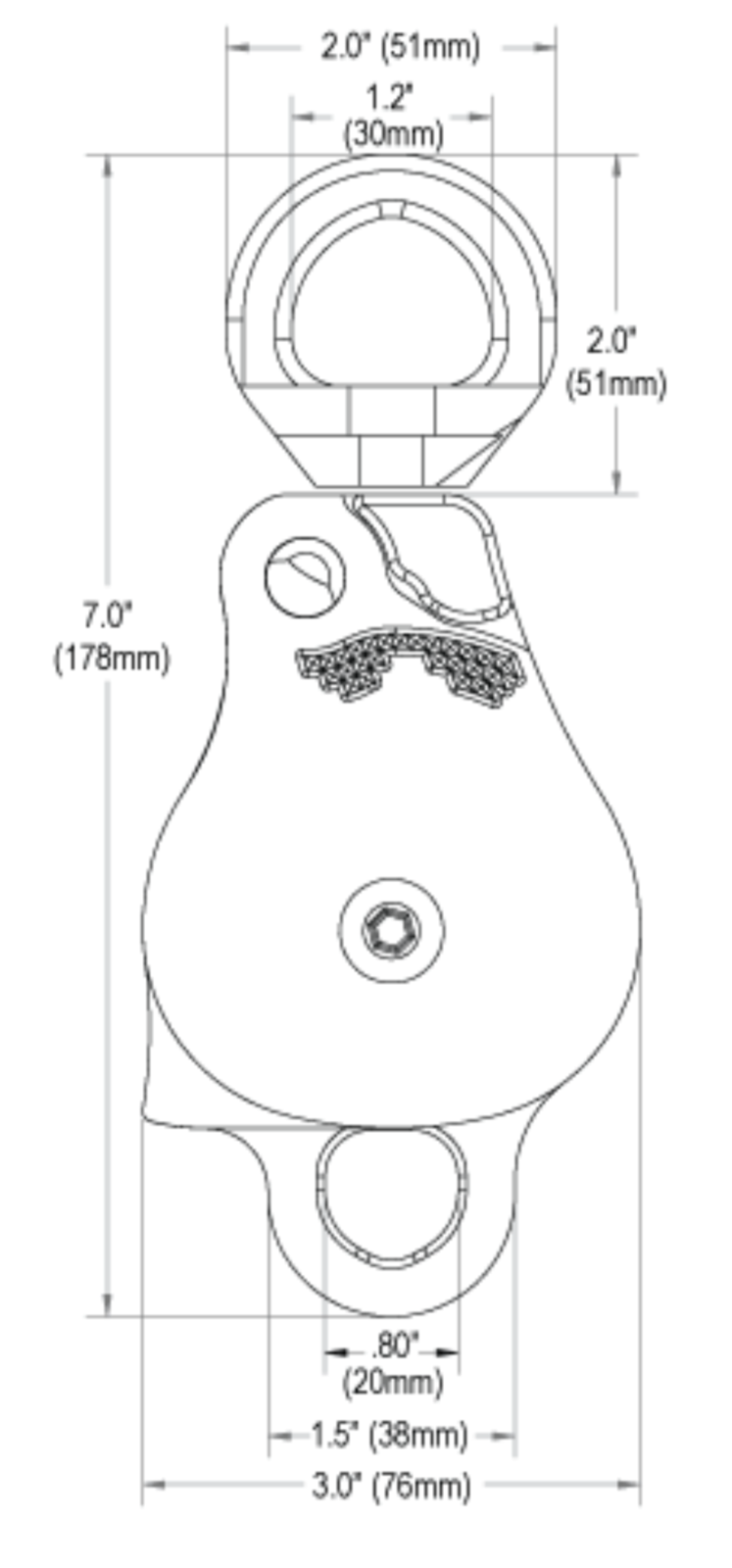

  • height: 180mm
  • widith: 76mm
  • weight: 591g

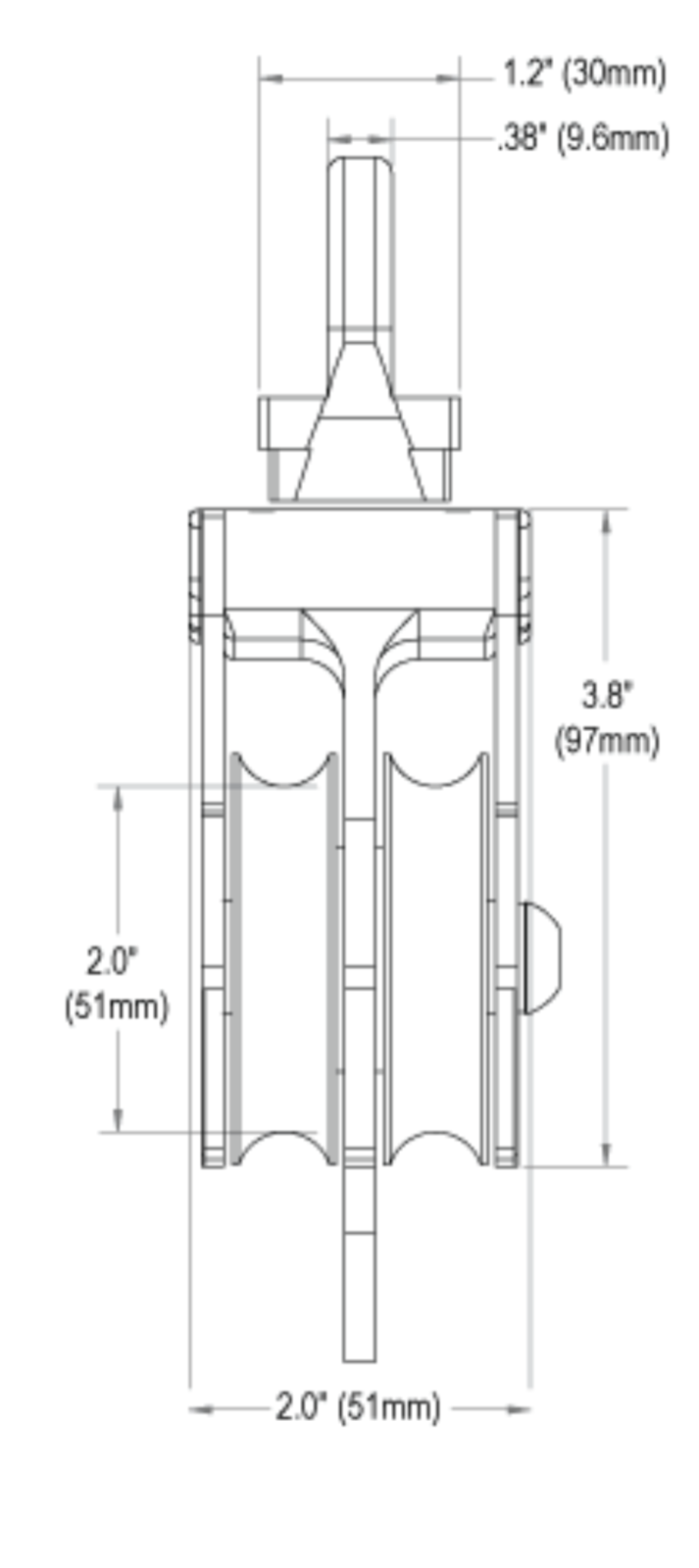

  • sheave diameter: 51mm (2.")

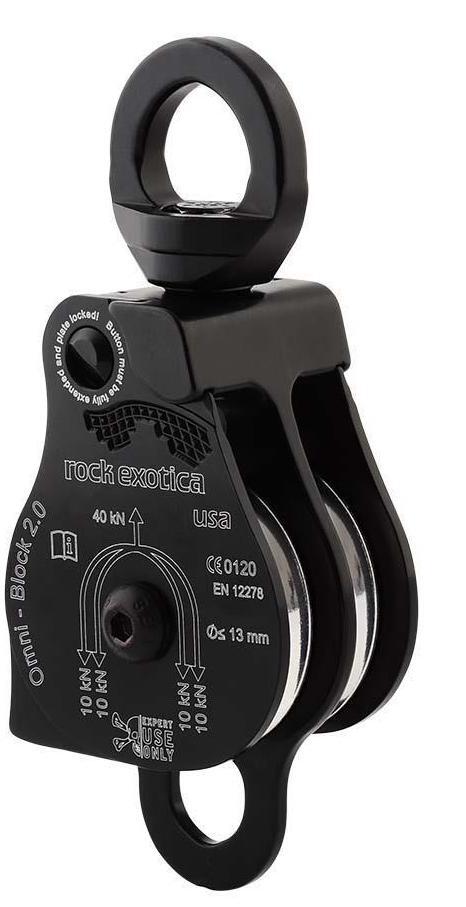

  • sheaves: double
  • sheave material: aluminium
  • colour: black/standard orange
