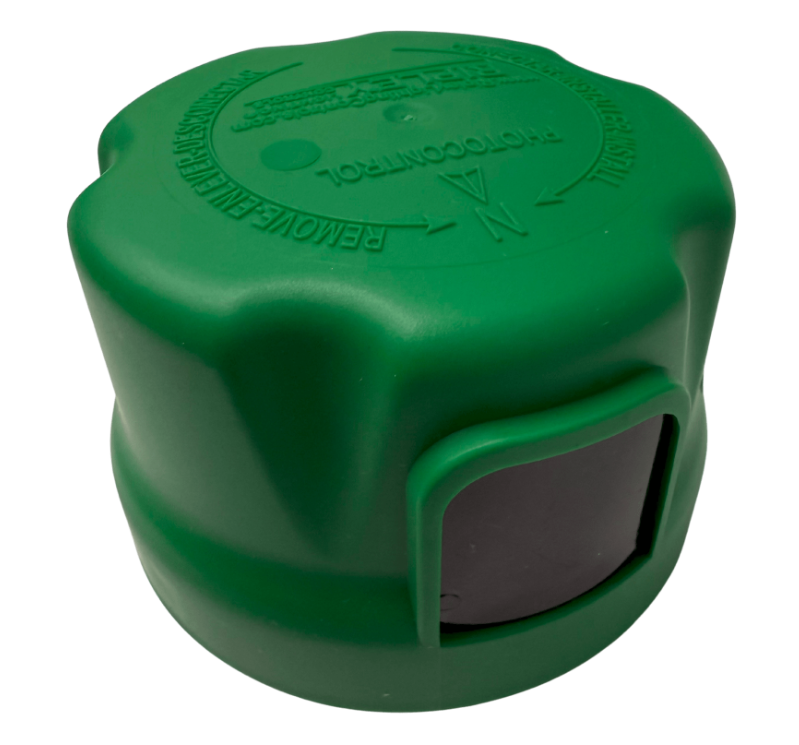

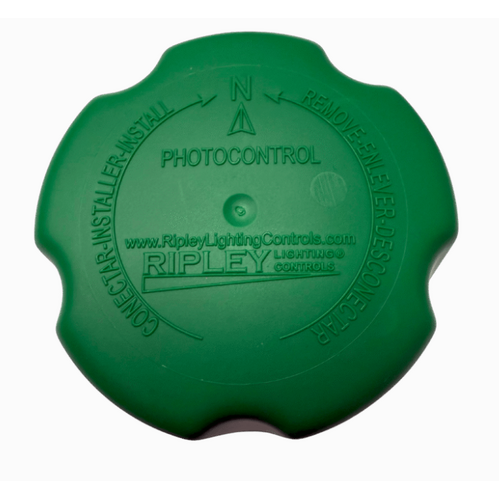

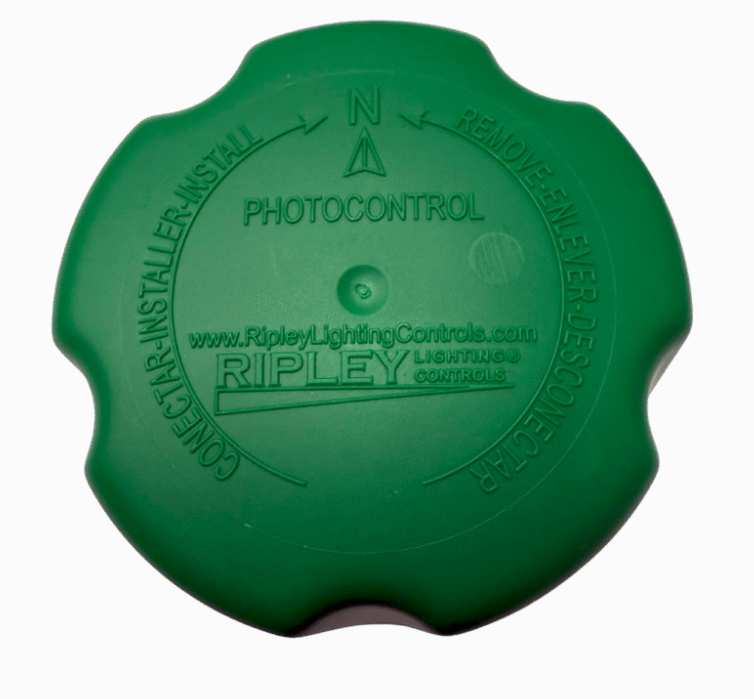

key features

  • tru-filter infrared filtering photocontrols
    • greater control
    • greater accuracy
    • overall energy savings
  • double-sided plated-through circuit board(DSPT) for durabiliuty and reliability
  • quad-gate technology for precision and consistency
  • full wave rectification
  • dual joule MOV
  • high impact thermoplastic base

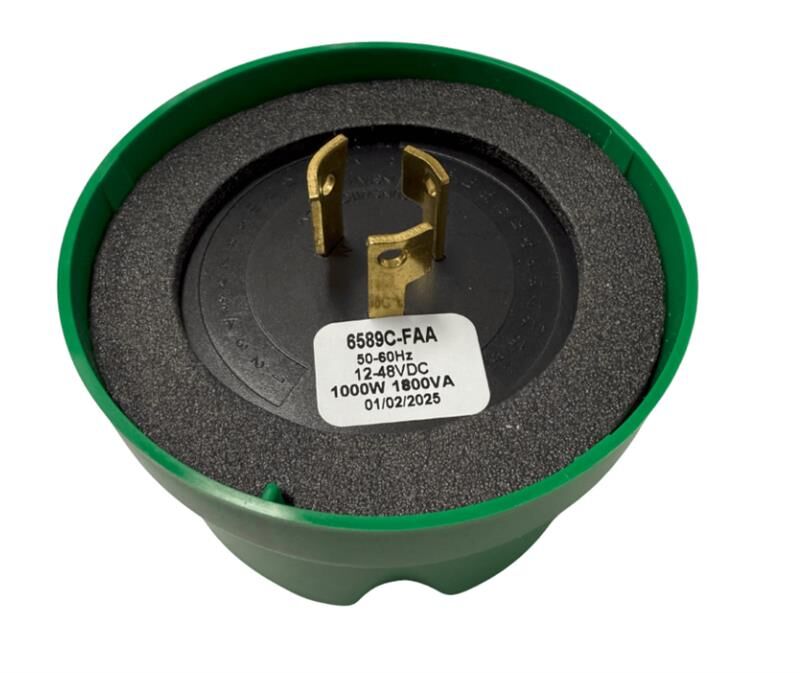

  • solid brass contact blades
  • UV stabilised permanent colour, hgh impact resistant polypropytene cover

specifications

  • nominal voltage (12-48V DC model)
    • 12-48V volts (DC), voltage range 12.5-52 volts (DC)
    • power consumption 0.5 watts at lowest nominal voltage
  • fail mode: on
  • load rating: 10 Amp
  • operating temperature
    • -40C to +70C (-40F to +158F)
  • photocell: cadmium sulphide
  • dielectric strength: 5000 volts between current carrying parts and metal surfaces
  • surge protection: 50 joule MOV / 10,000 amp surge current
  • time dedlay off (instant on): 3 to 5 seconds
  • operating lights levels (standard settings): Turn On @ 35 FC ± .25 / Turn Off @ 52 FC

meets or exceeds rigid quality requirements of applicable ANSI C136.10, and C136.24 and C136.41

note: PE-CELL-MOUNT is require to install the photocell and this part is sold separately

(PECELL-DC)

SKU PECELL-DC
Brand Farlight
Unit Of Measure ea
